Specification
Export to Excel

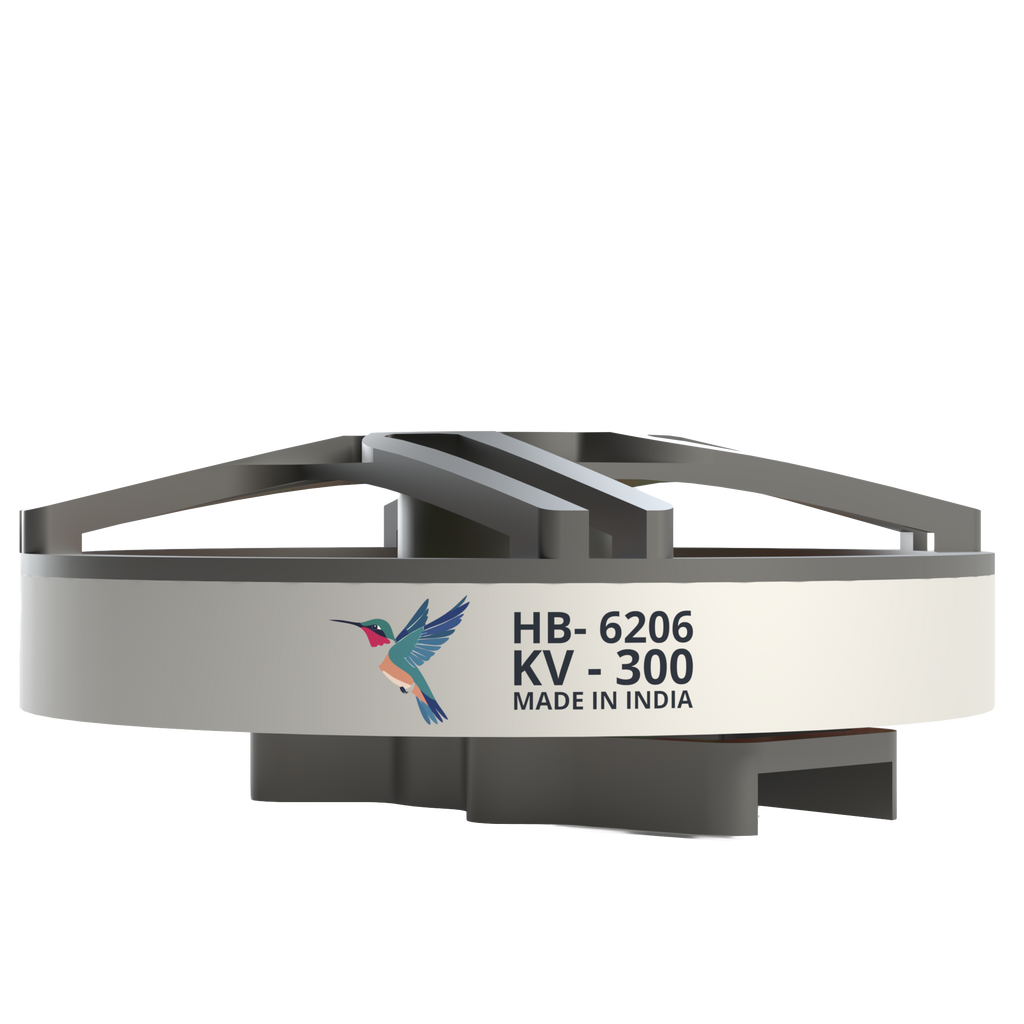

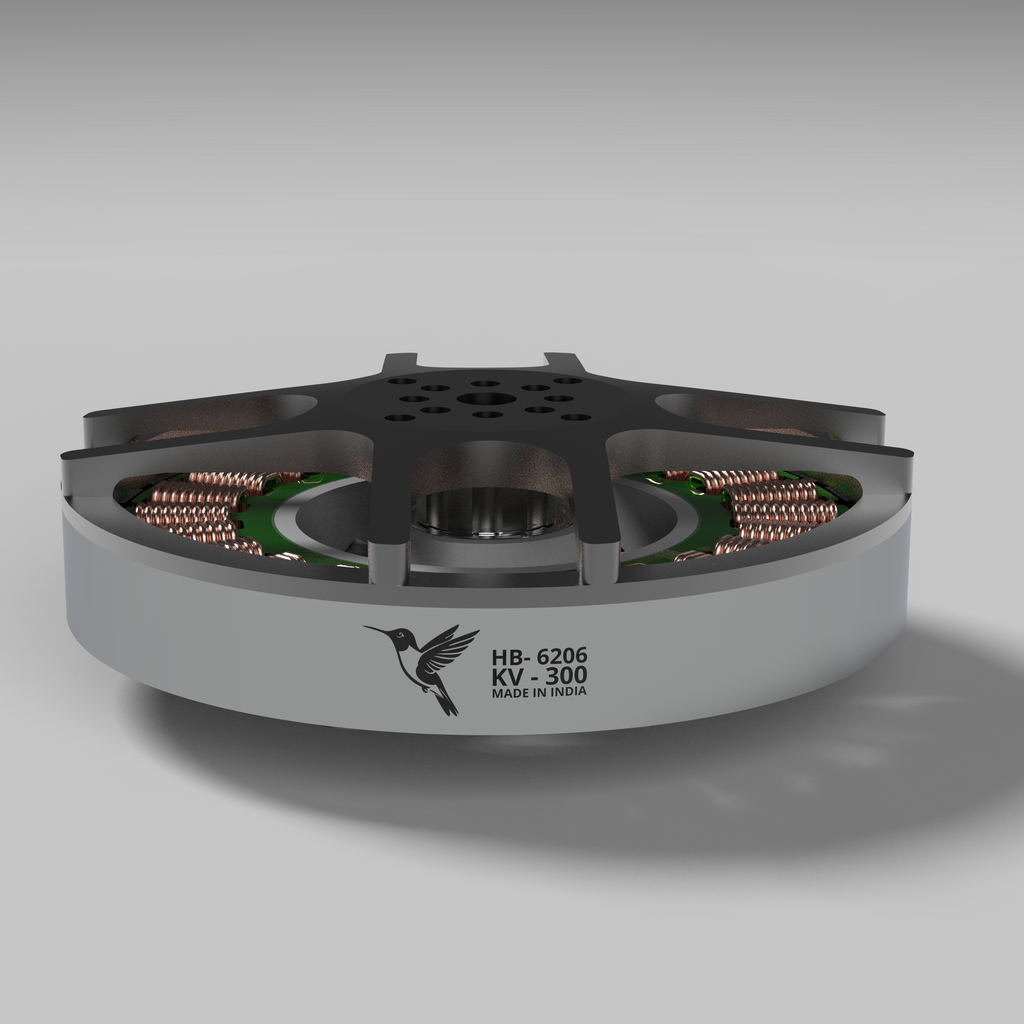

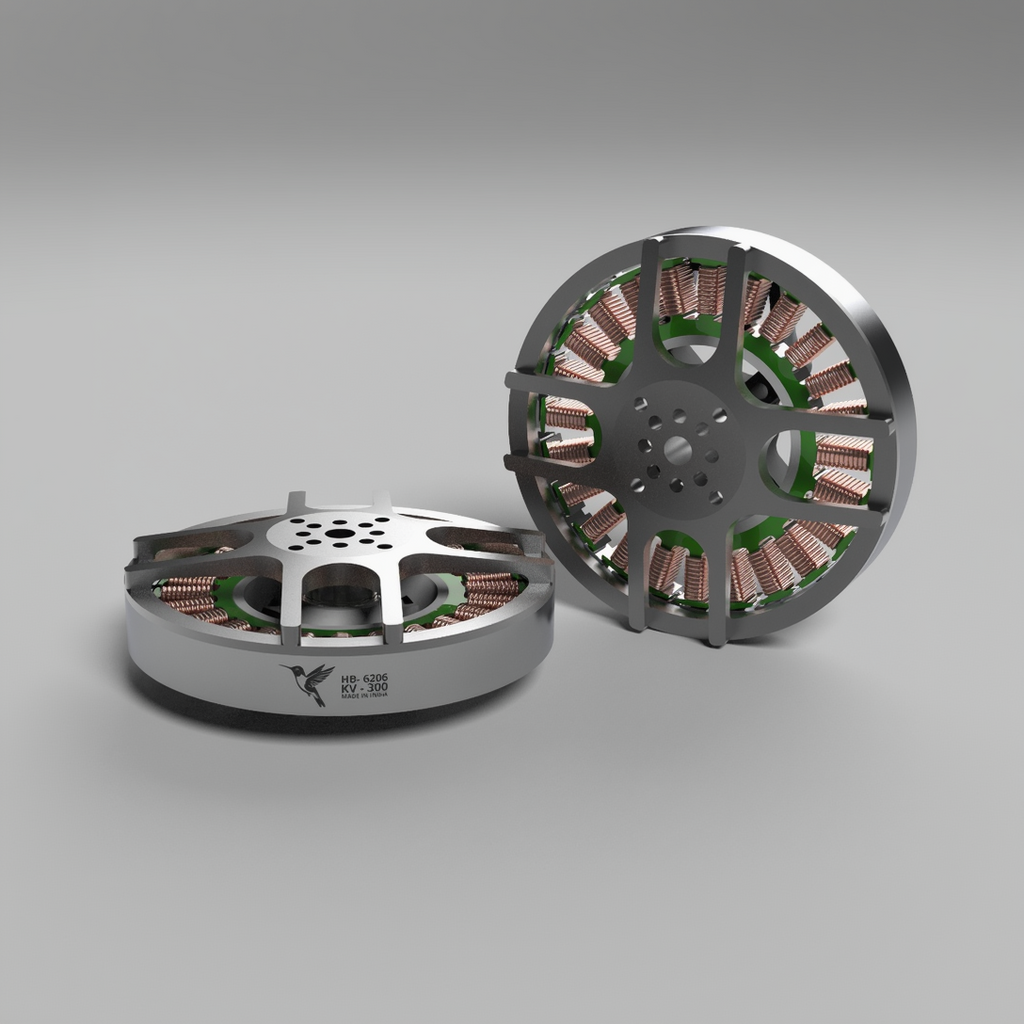

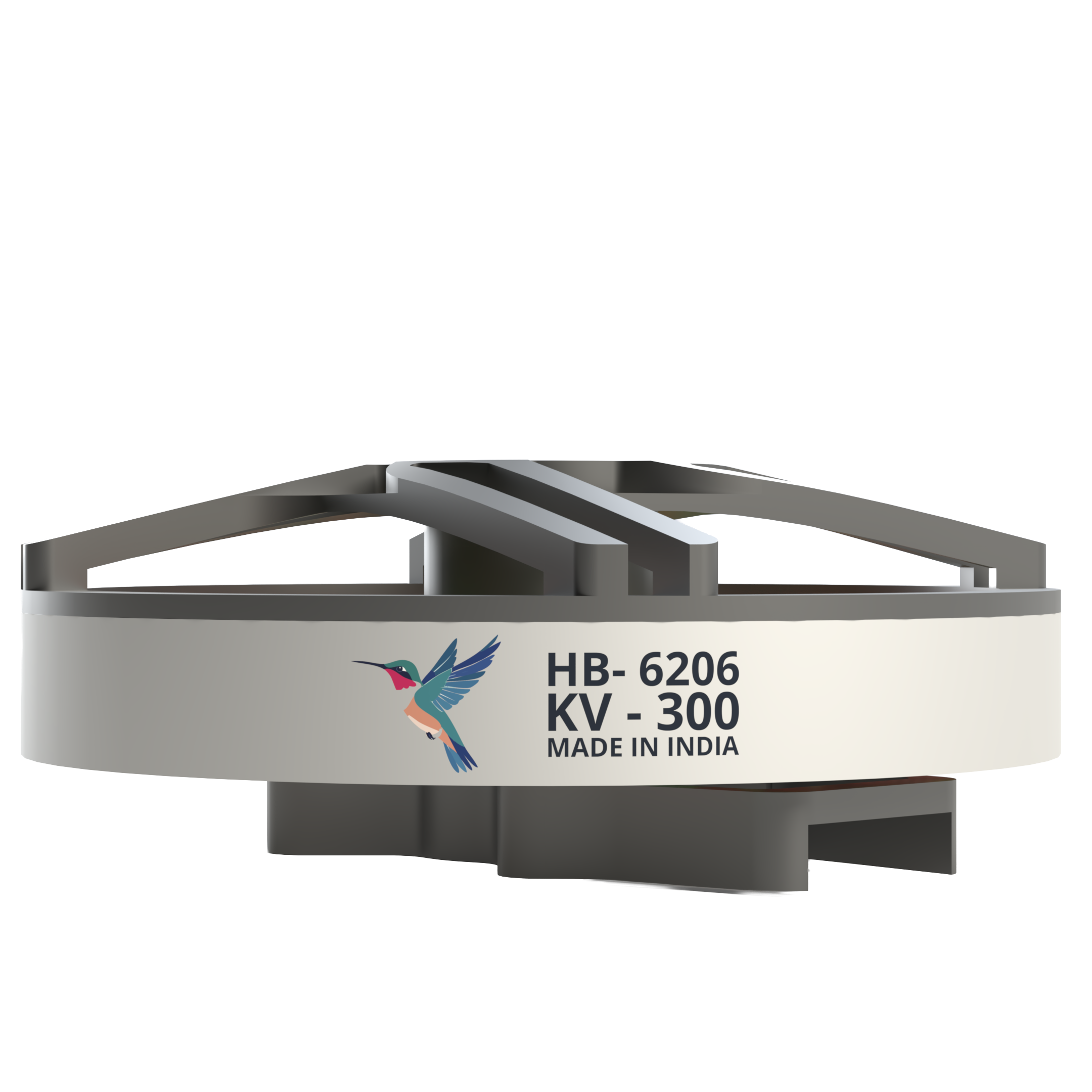

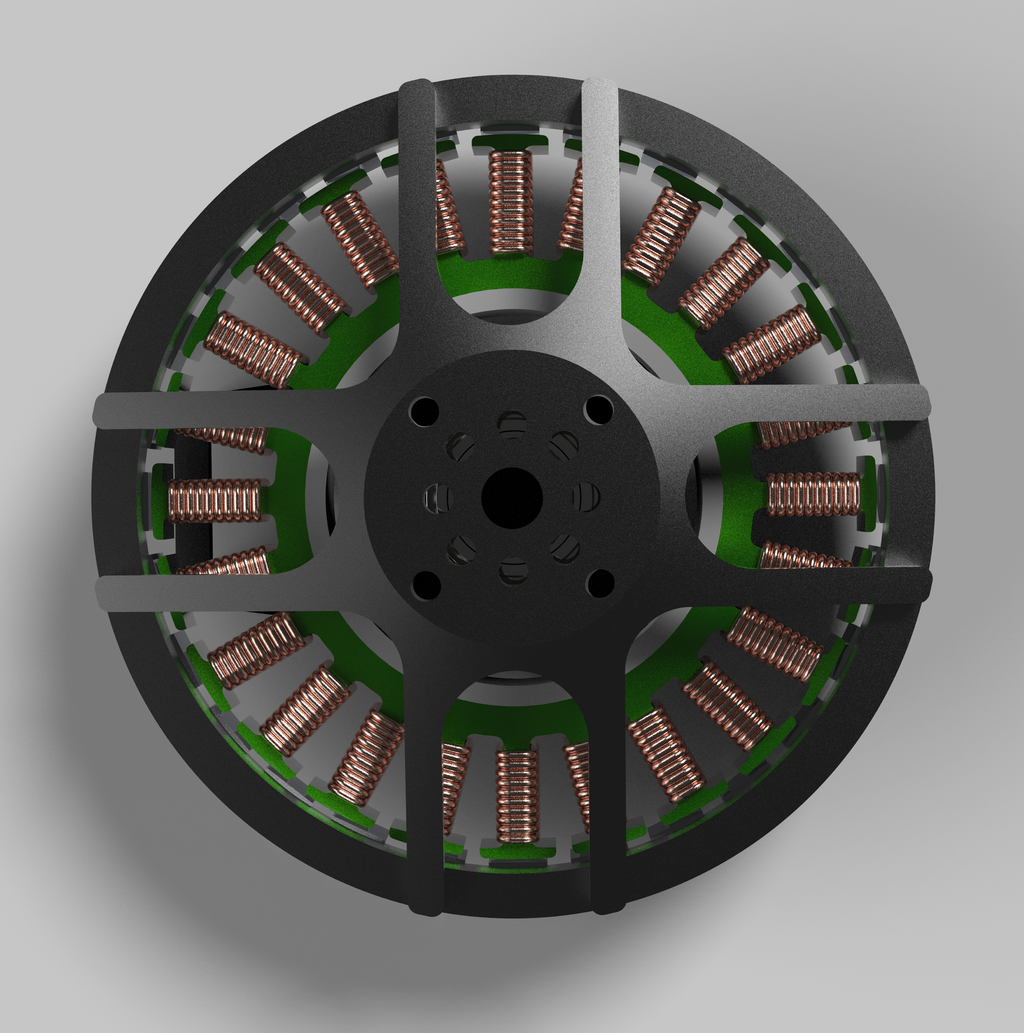

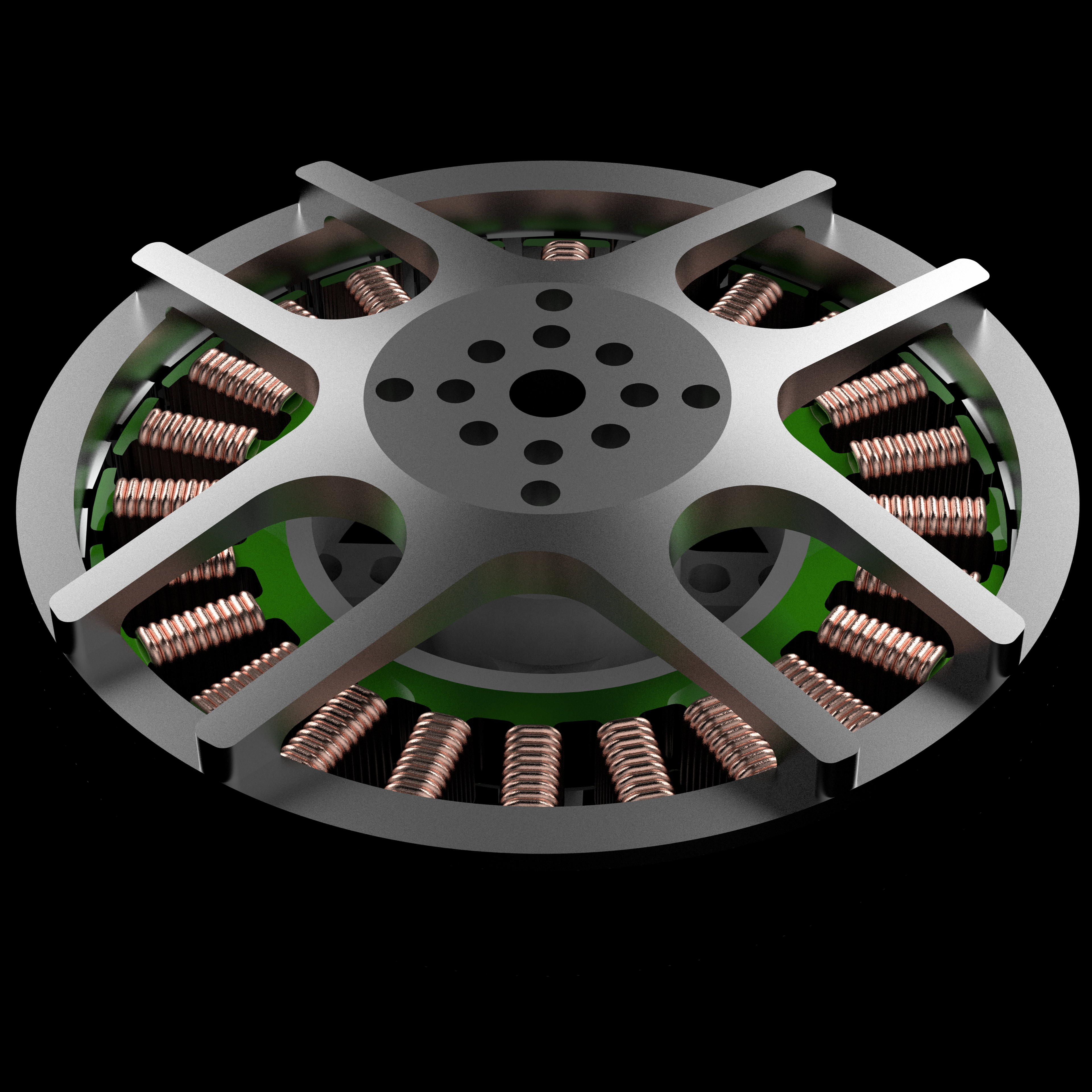

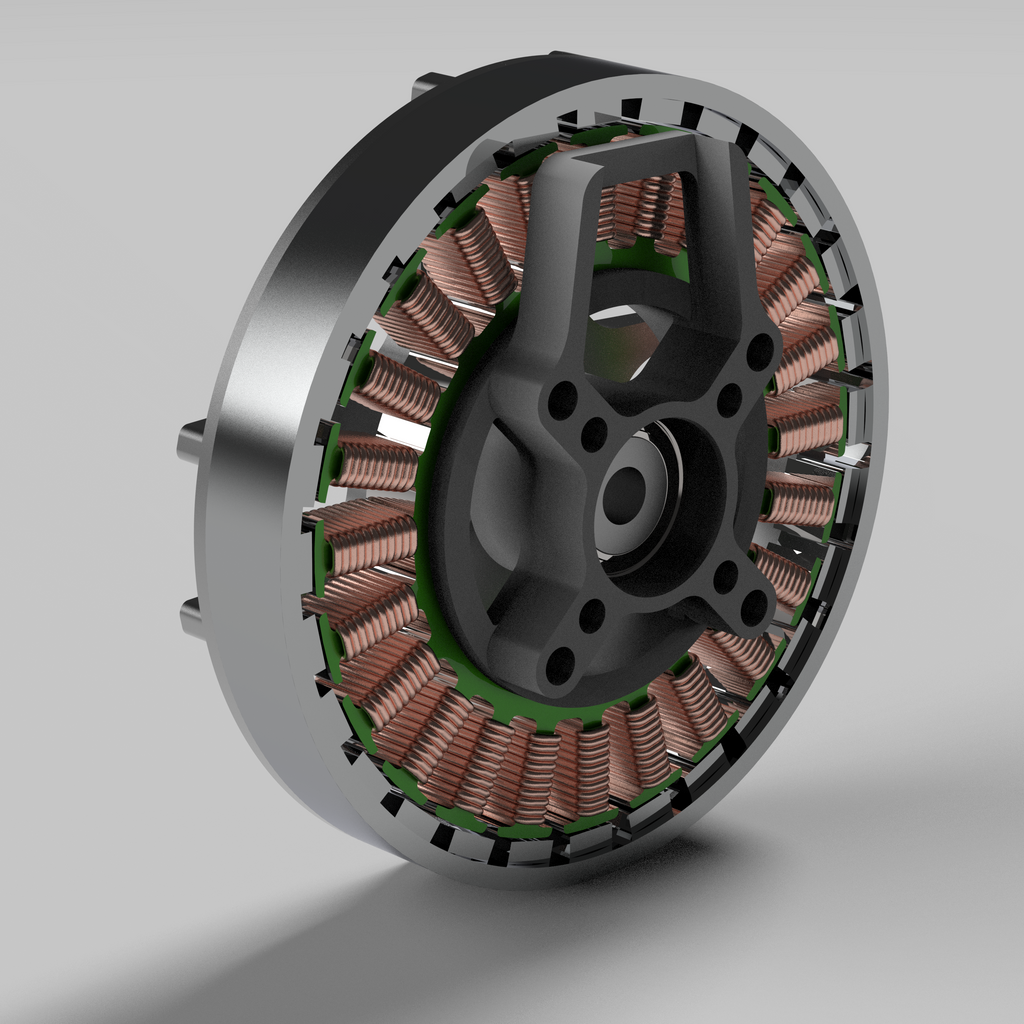

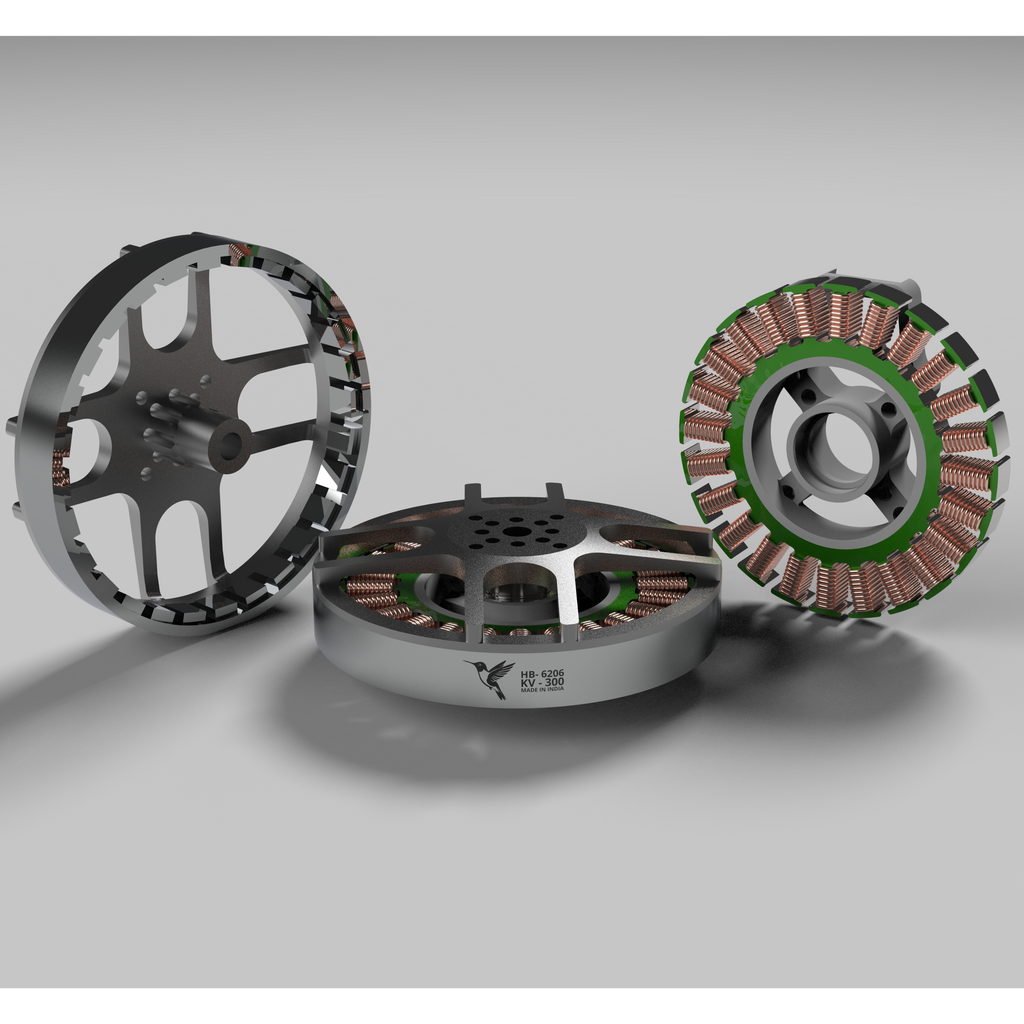

Motor TypeHB-6206
KV Rating300 KV
Rated Voltage6S LiPo (25 V)
Max Power (tested)600 W
No-load Current0.5 A
Max Current25 A
Weight180 g

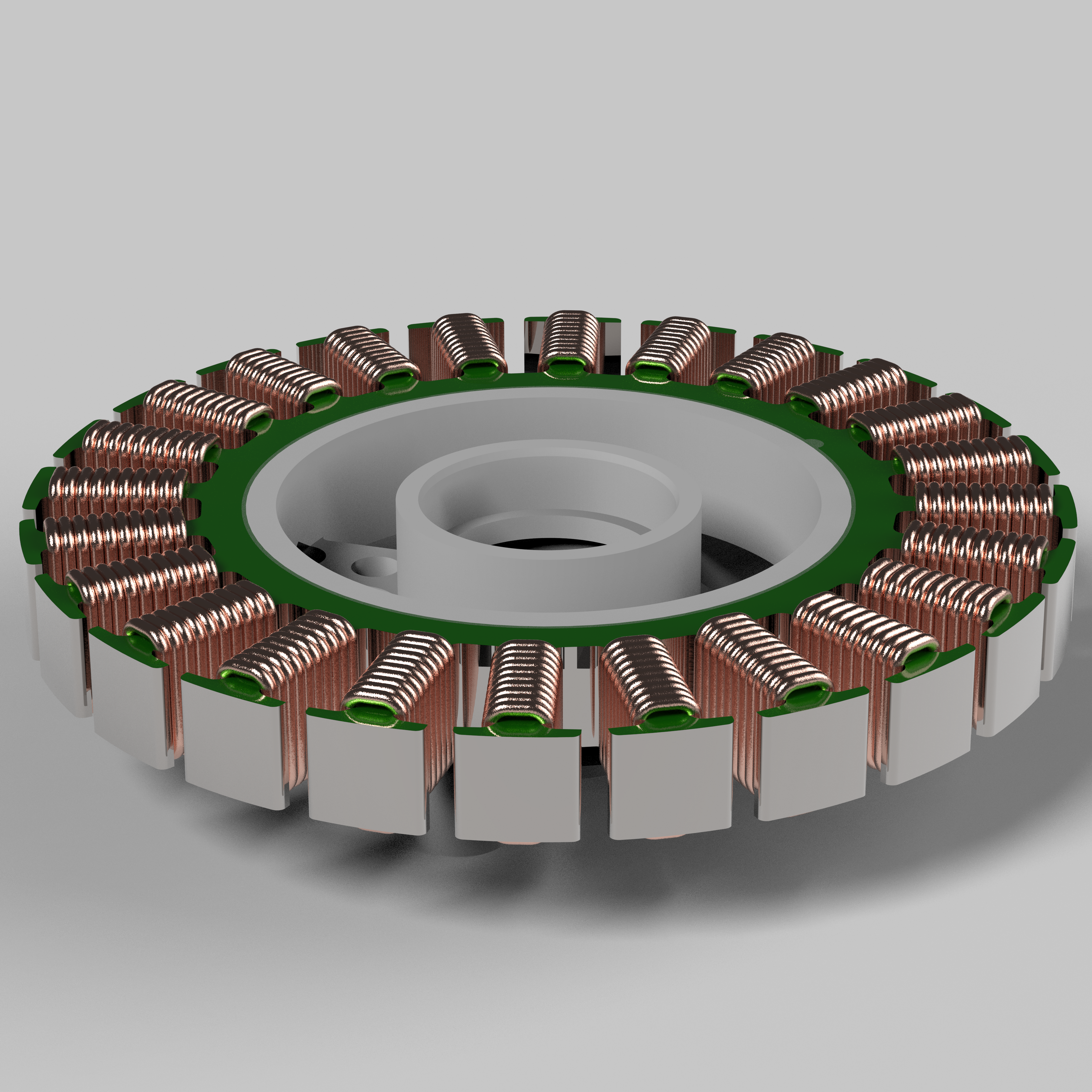

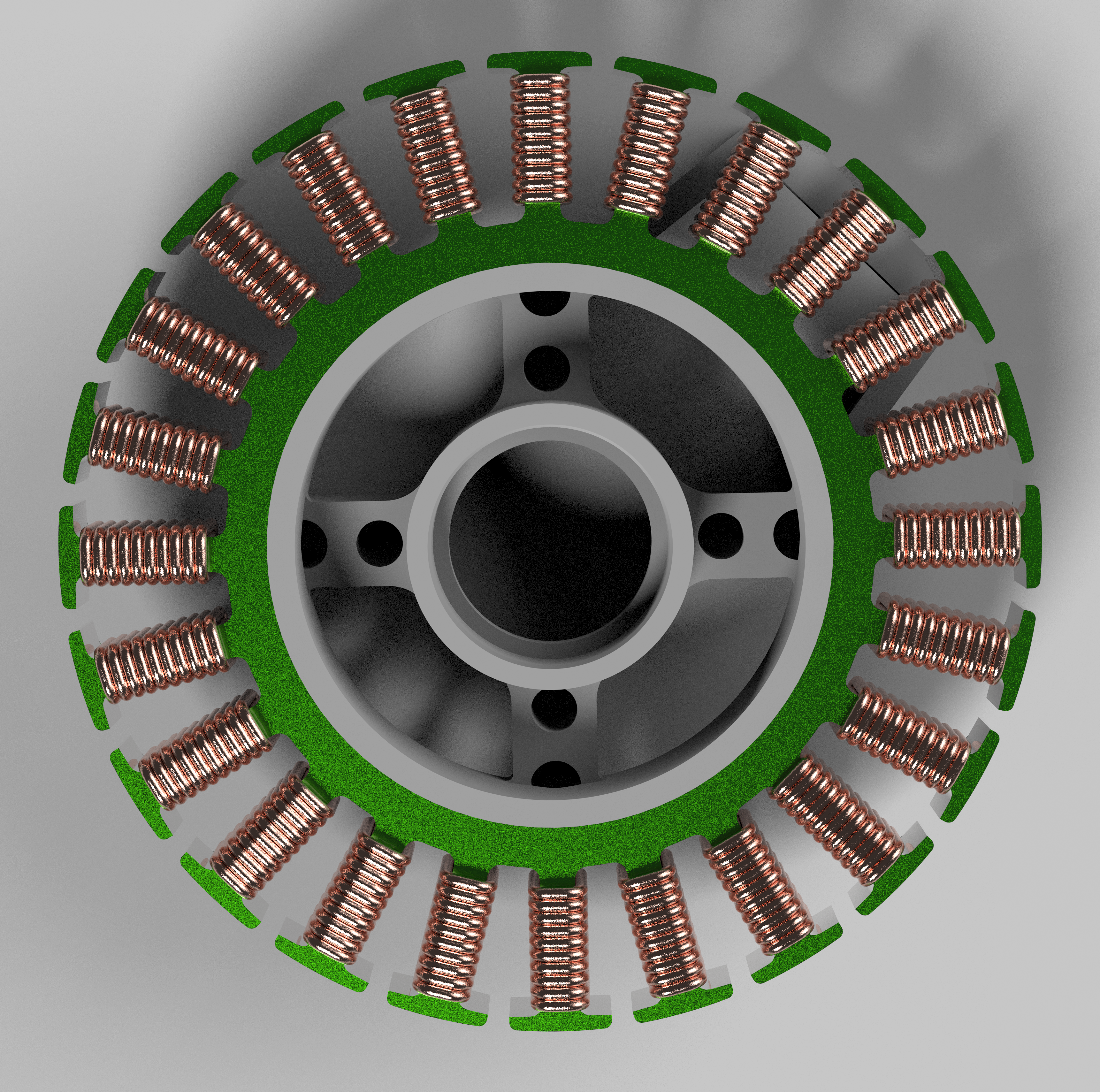

Configuration24N28P
Test Data
Export to Excel
| Throttle % | RPM | Voltage (V) | Current (A) | Thrust (g) | Torque (N·m) | Electrical (P-W) | Shaft (P-W) | EFF (%) | Eff (g/W) | System (g/W) |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 1350.8 | 24.959 | 0.406 | 146 | 0.039 | 10.133 | 5.517 | 54.4 | 26.4 | 14.4 |
| 20 | 1852.5 | 24.947 | 0.874 | 312 | 0.076 | 21.804 | 14.743 | 67.6 | 21.1 | 14.3 |
| 30 | 2387.9 | 24.920 | 1.702 | 554 | 0.130 | 42.414 | 32.508 | 76.6 | 17.0 | 13.0 |
| 40 | 2928.9 | 24.889 | 3.049 | 872 | 0.196 | 75.887 | 60.117 | 79.2 | 14.5 | 11.4 |
| 50 | 3536.2 | 24.829 | 5.129 | 1280 | 0.283 | 127.34 | 104.79 | 82.2 | 12.2 | 10.0 |
| 60 | 4066.4 | 24.754 | 7.785 | 1727 | 0.376 | 192.71 | 160.11 | 83.0 | 10.7 | 8.9 |
| 70 | 4533.8 | 24.668 | 10.94 | 2148 | 0.465 | 269.99 | 220.77 | 81.7 | 9.7 | 7.9 |
| 80 | 4990.9 | 24.560 | 14.38 | 2597 | 0.562 | 353.19 | 293.73 | 83.1 | 8.8 | 7.3 |
| 90 | 5419.6 | 24.430 | 18.77 | 3087 | 0.665 | 458.62 | 377.41 | 82.2 | 8.1 | 6.7 |
| 100 | 5715.9 | 24.313 | 22.28 | 3434 | 0.743 | 541.76 | 444.74 | 82.0 | 7.7 | 6.3 |
