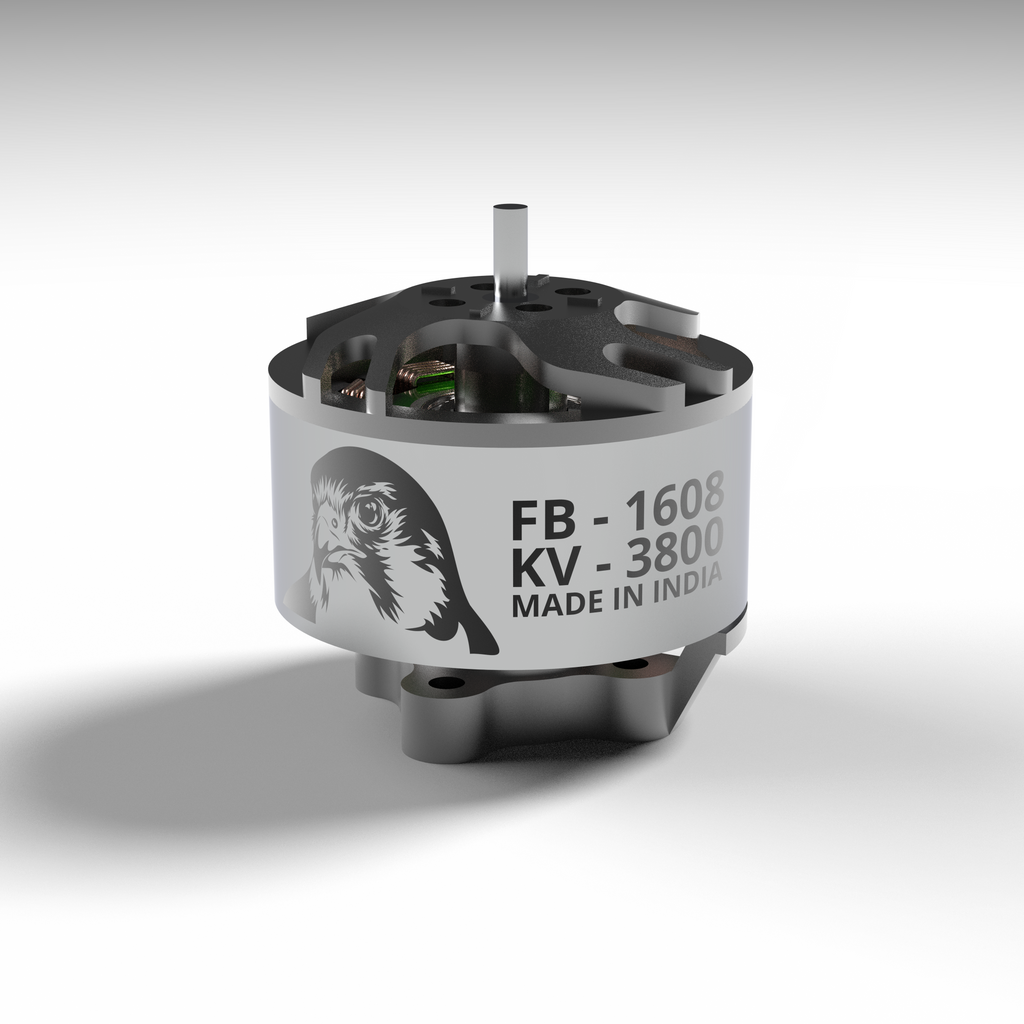

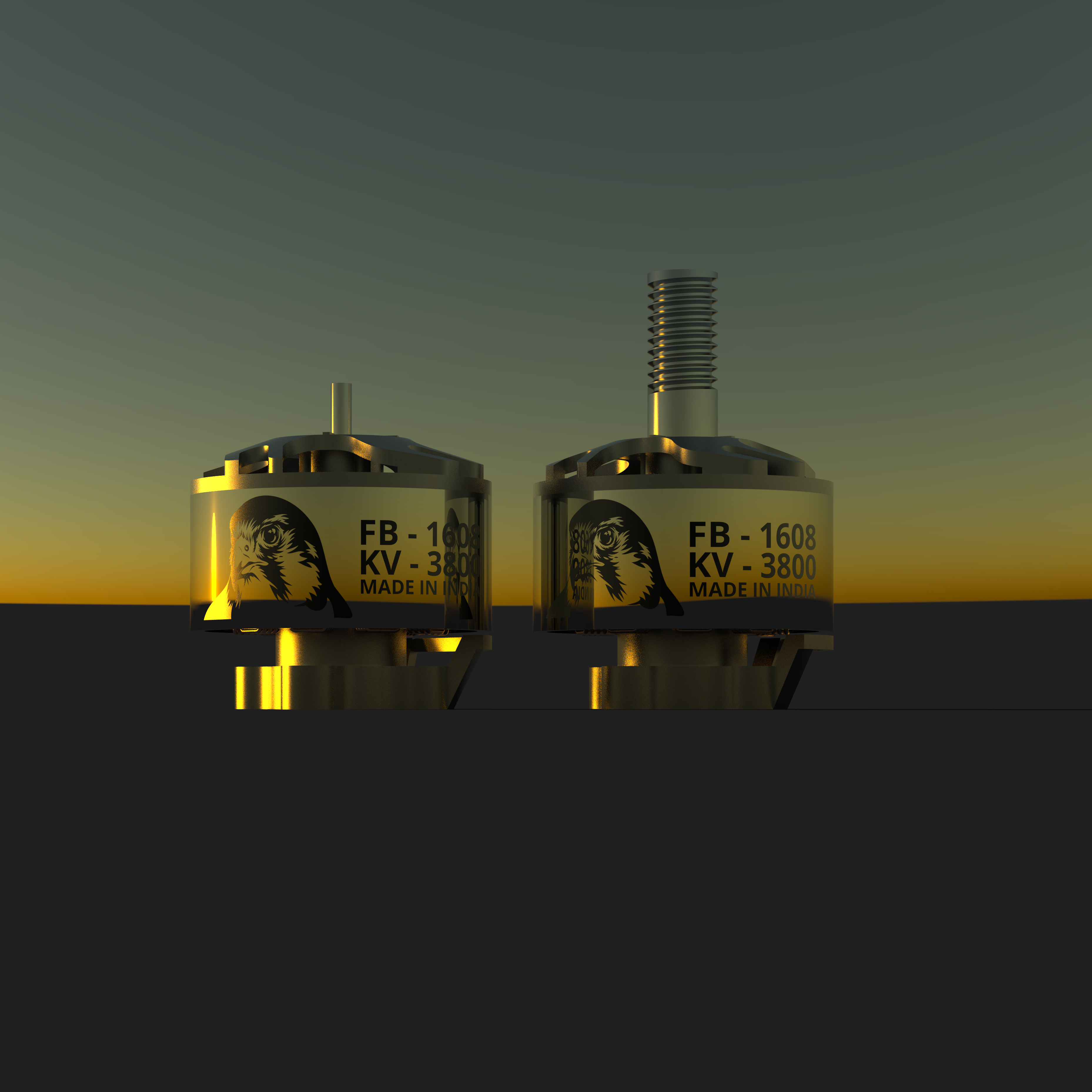

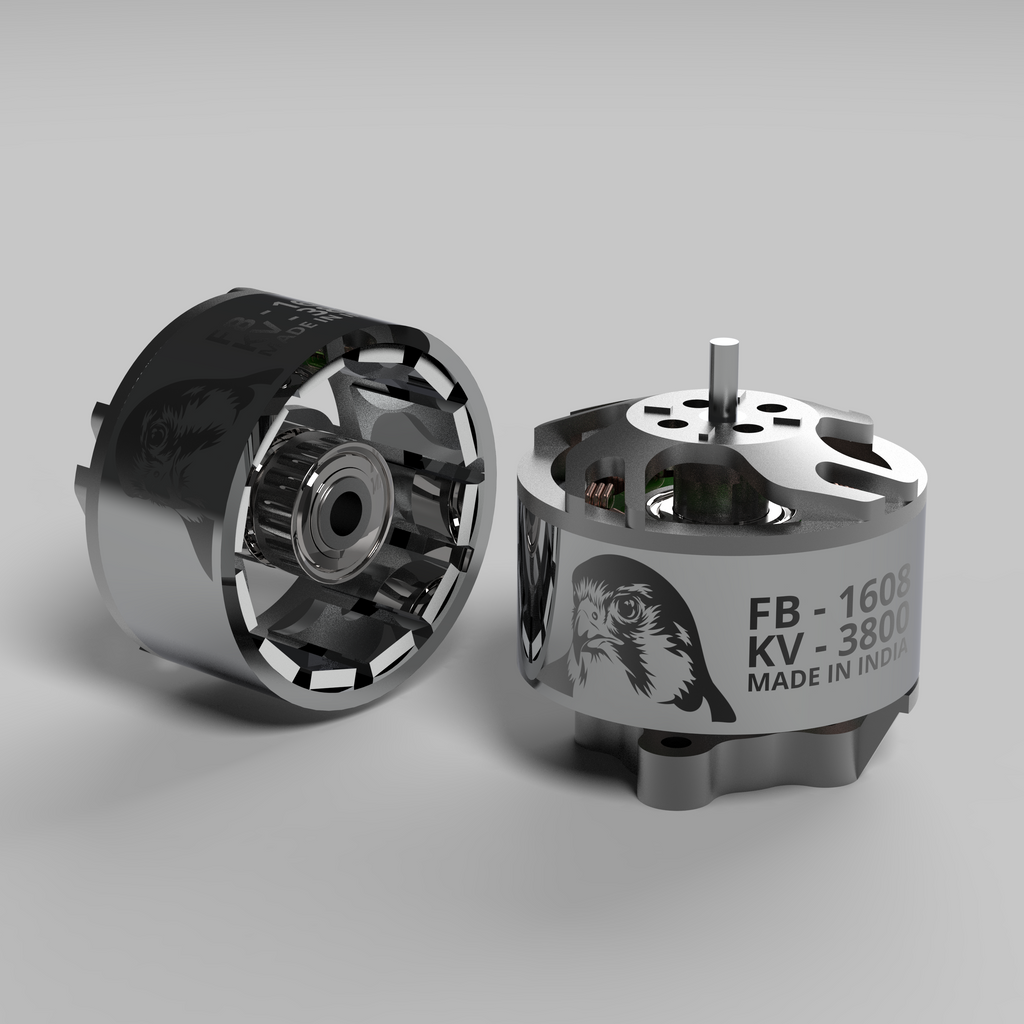

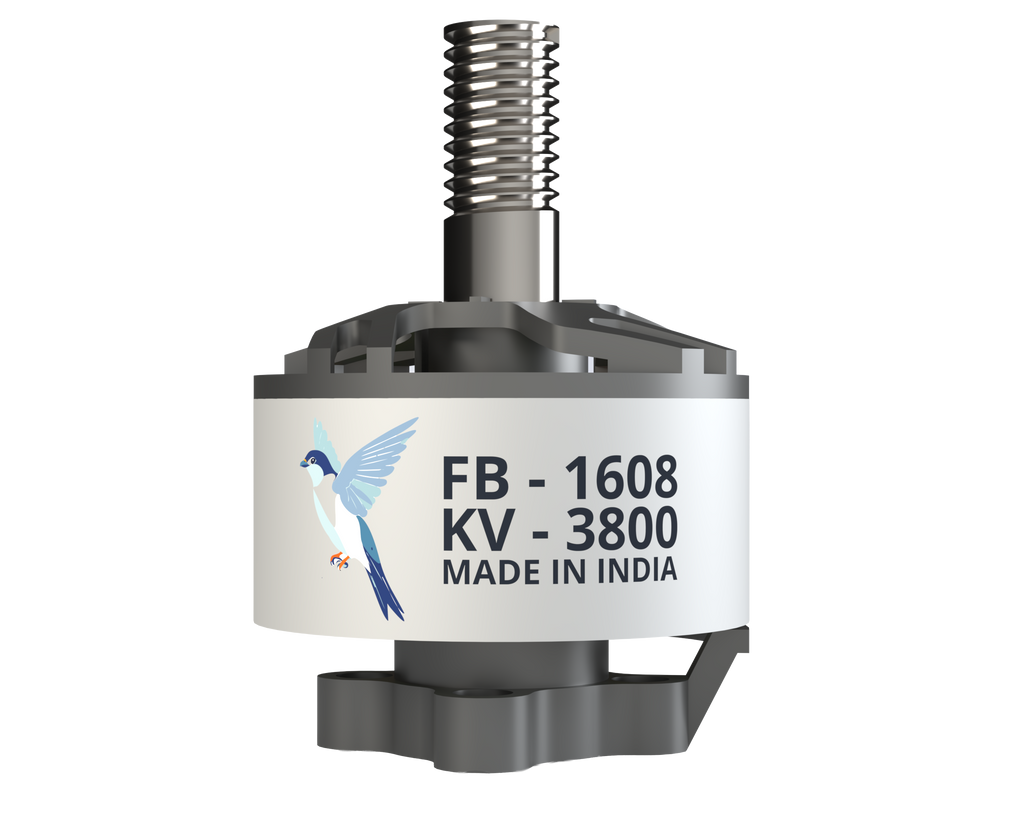

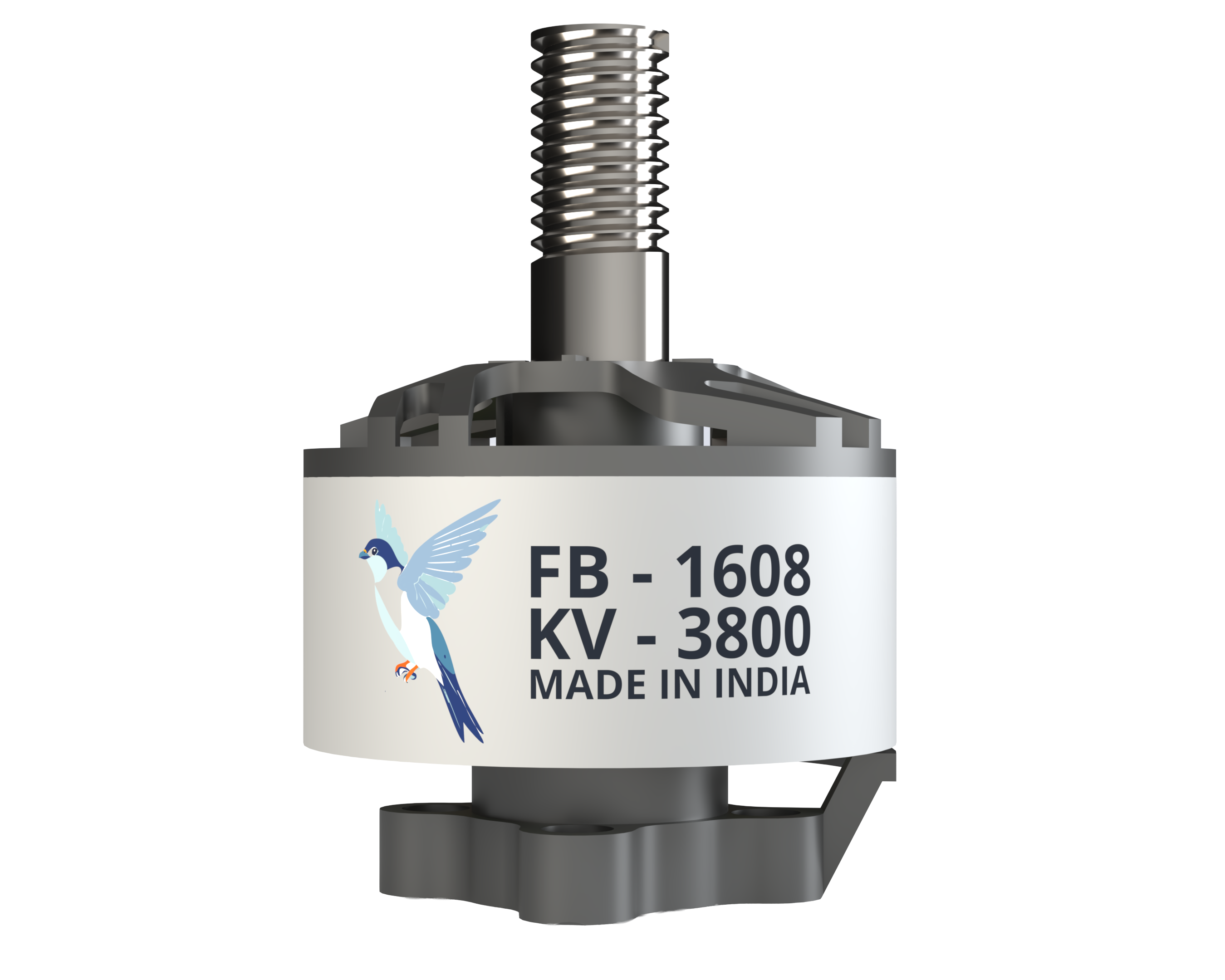

Falcon FB-1608

Falcon FB-1608

KV-3800 / 5mm Shaft
Rs. 2,400.00
Rs. 2,400.00 Rs. 1,999.00
Skip to product information
Falcon FB-1608
  • Falcon FB-1608
  • Falcon FB-1608
  • Falcon FB-1608
  • Falcon FB-1608
  • Falcon FB-1608
  • Falcon FB-1608
  • Falcon FB-1608
  • Falcon FB-1608
Falcon FB-1608

Falcon FB-1608

Rs. 2,400.00
Rs. 2,400.00 Rs. 1,999.00

Product Highlight

Compact high-speed design
Smooth indoor flight
ParameterKV-3800
Shaft Options

Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

Made for lightweight
racing, fpv and aerobatic drones

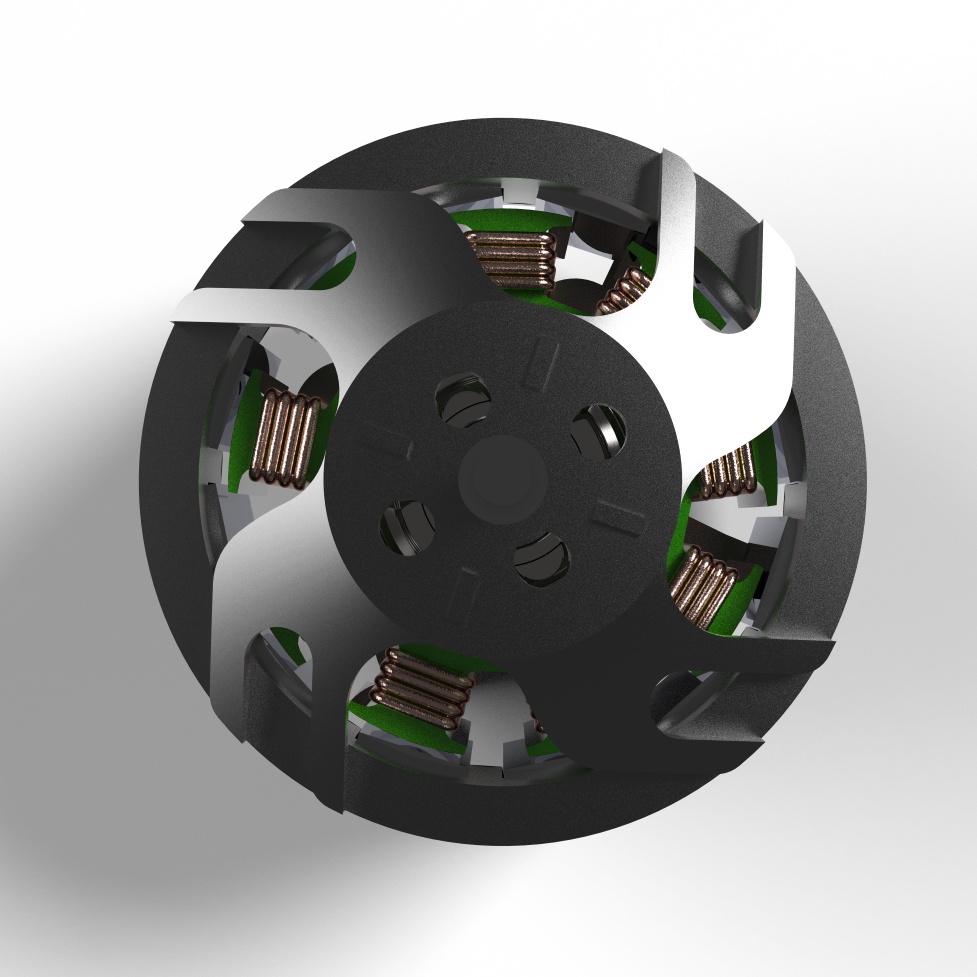

Swastik design for
efficient aircooling

Inspired by the Peregrine Falcon, the
fastest bird on Earth, Falcon Series,
Delivers Ultra high rpms for instant thrust and rapid directional response

(1606, 1608) India’s smallest
motors

Hand-made winding and
high quality copper ensuring motor safety upto 2200 C

Made in India Jindal
steel and aluminium ensuring the high quality.

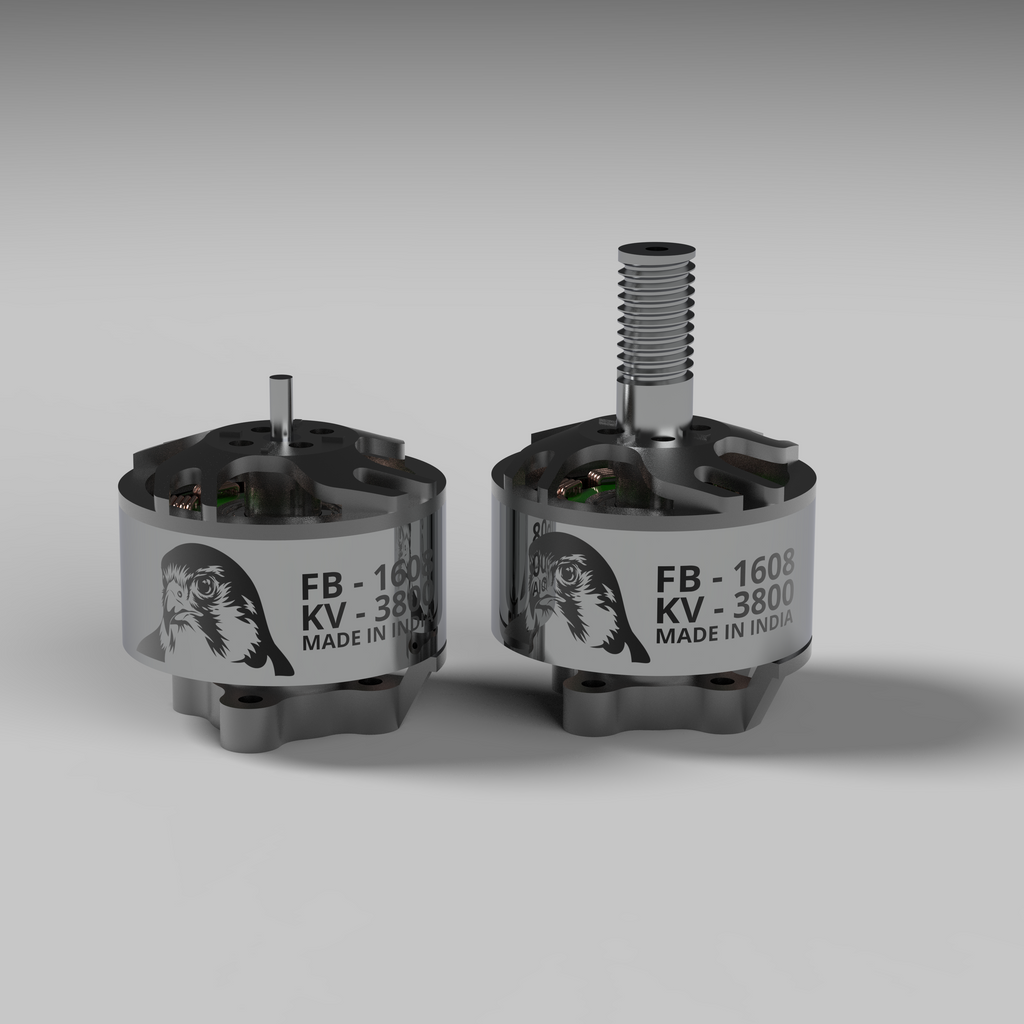

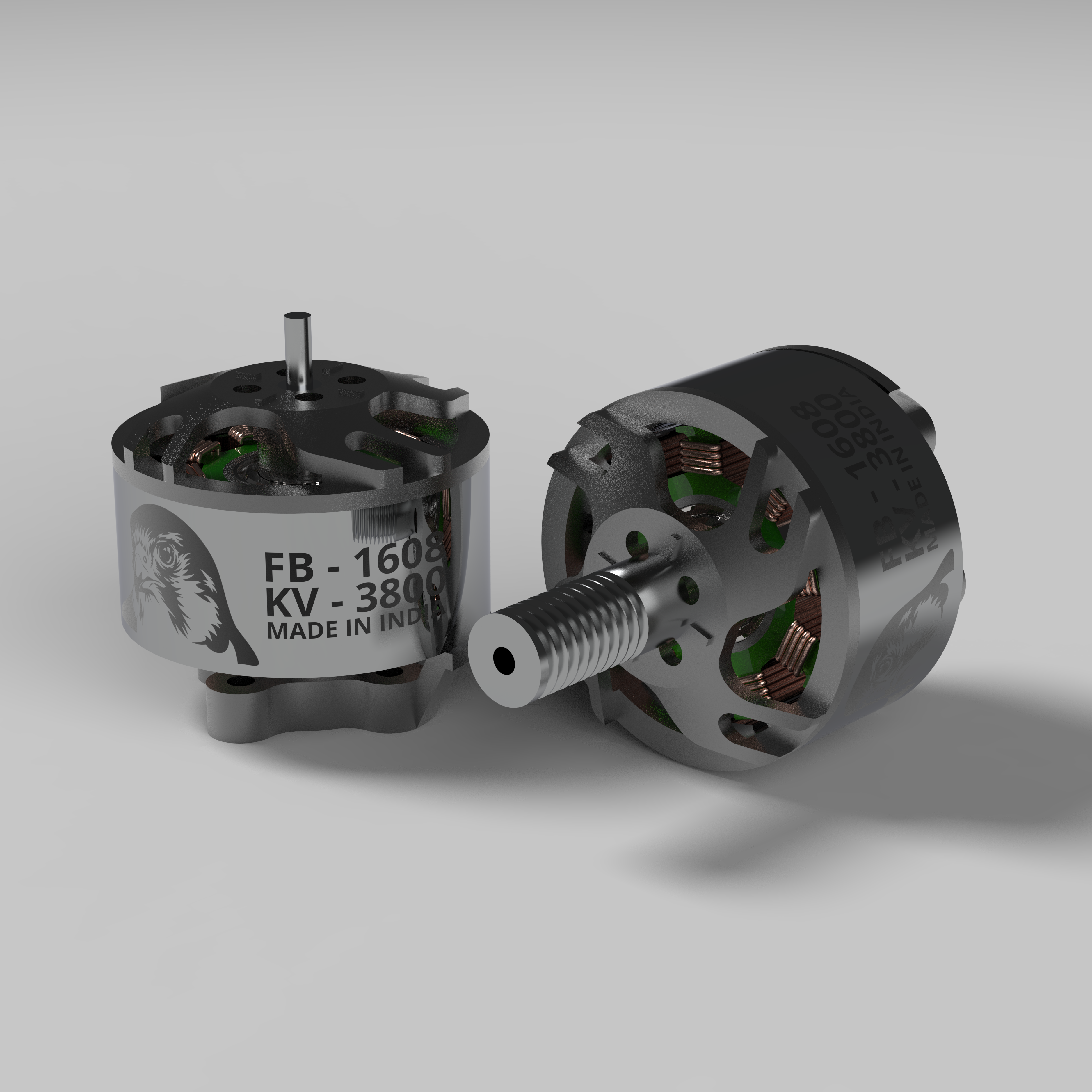

Shaftless and shafted Variants available

Specification Export to Excel
Motor Type FB-1608
KV Rating 3800 KV
Rated Voltage 3S LiPo (11.4 V)
Max Power (tested) 200 W
No-load Current 0.5 A
Max Current 20 A
Weight (incl. cable) 18 g
Configuration 9N12P
Stator Lamination Japanese 0.2mm steel
Propeller Gemfan D63 Ducted 3-Blade 63mm
Copper Wire Rating 220°C high-temperature resistance
Cooling Vortex cooling design (integrated)
Max Temperature 80°C
Rotor Balance Standard ≤5 mg
Typical ESC used 25 A Flame ESC
Test Ambient 37.8°C, 46.36% RH, 98.43 kPa
Test Data Export to Excel
Throttle % RPM Voltage (V) Current (A) Thrust (g) Torque (N·m) Electrical (P-W) Shaft (P-W) EFF (%) Eff (g/W) System (g/W)
10 12778 11.29 1.21 29.2 0.0029 13.65 3.88 28.4 7.5 2.1
20 18980 11.27 2.65 73.2 0.0064 29.87 12.72 42.6 5.8 2.5
30 23656 11.26 4.21 110.3 0.0096 47.40 23.78 50.2 4.6 2.3
40 27158 11.24 5.83 153.2 0.0128 65.48 36.40 55.6 4.2 2.3
50 30090 11.22 7.47 166.8 0.0152 83.81 47.90 57.2 3.5 2.0
60 32303 11.19 9.05 168.5 0.0167 101.30 56.49 55.8 3.0 1.7
70 34866 11.18 10.26 197.8 0.0196 114.68 71.56 62.4 2.8 1.7
80 36411 11.16 11.31 236.7 0.0216 126.20 82.36 65.3 2.9 1.9
90 39479 11.13 13.77 272.6 0.0258 153.23 106.67 69.6 2.6 1.8
100 42207 11.10 16.14 317.0 0.0289 179.20 127.74 71.3 2.5 1.8
