Specification

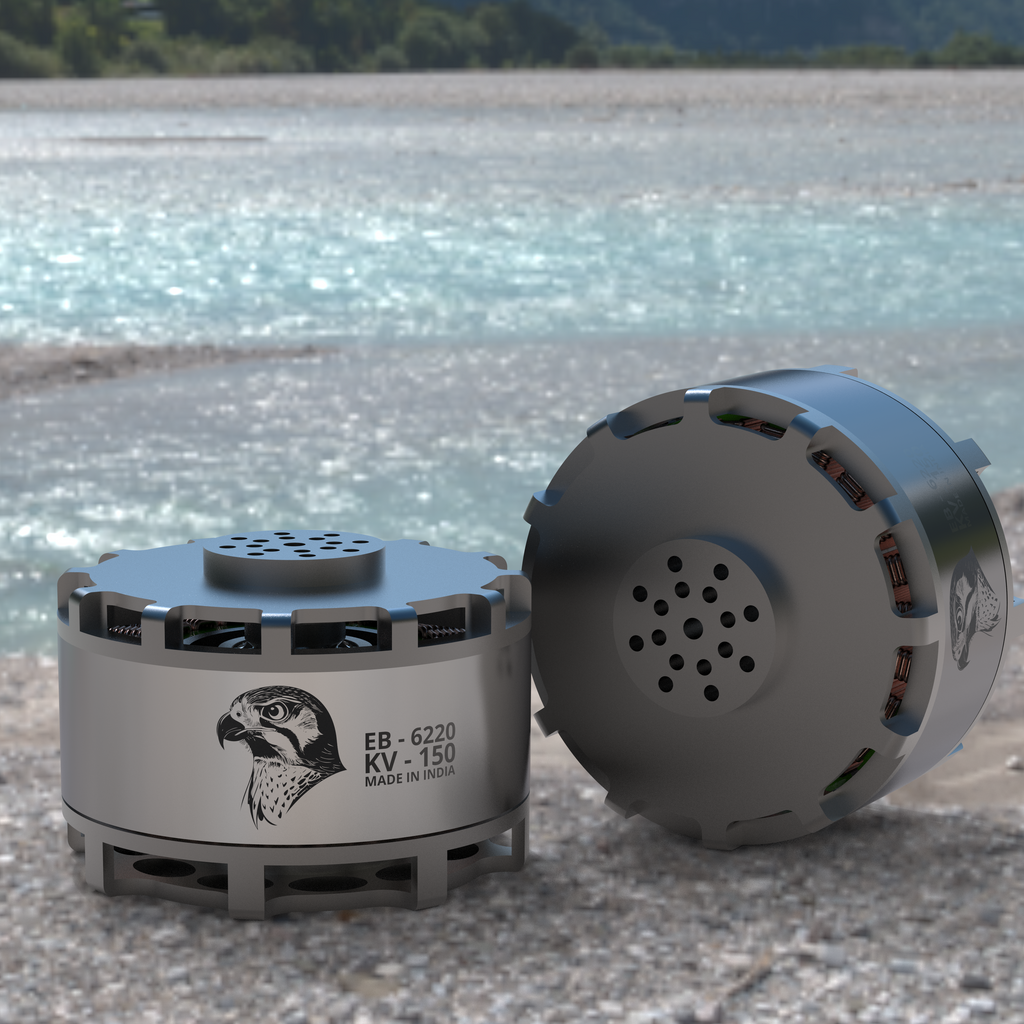

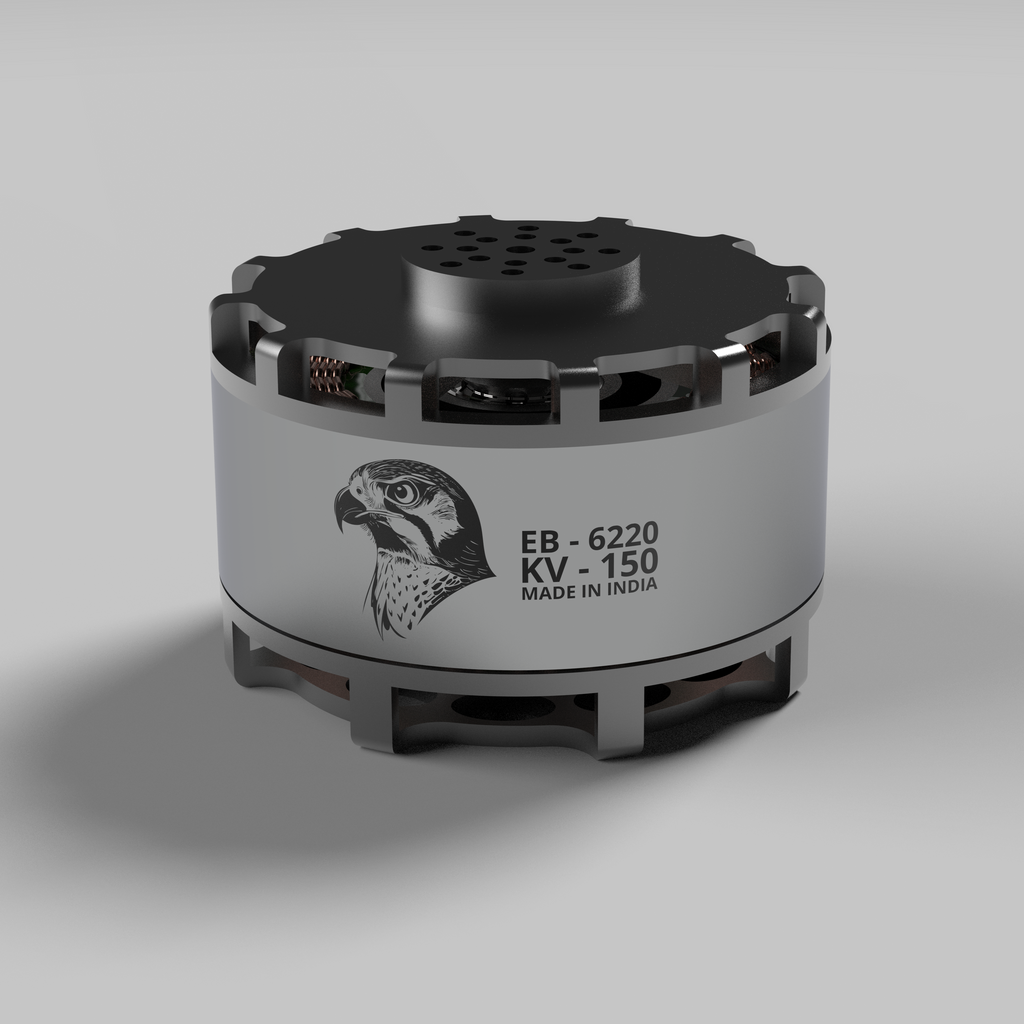

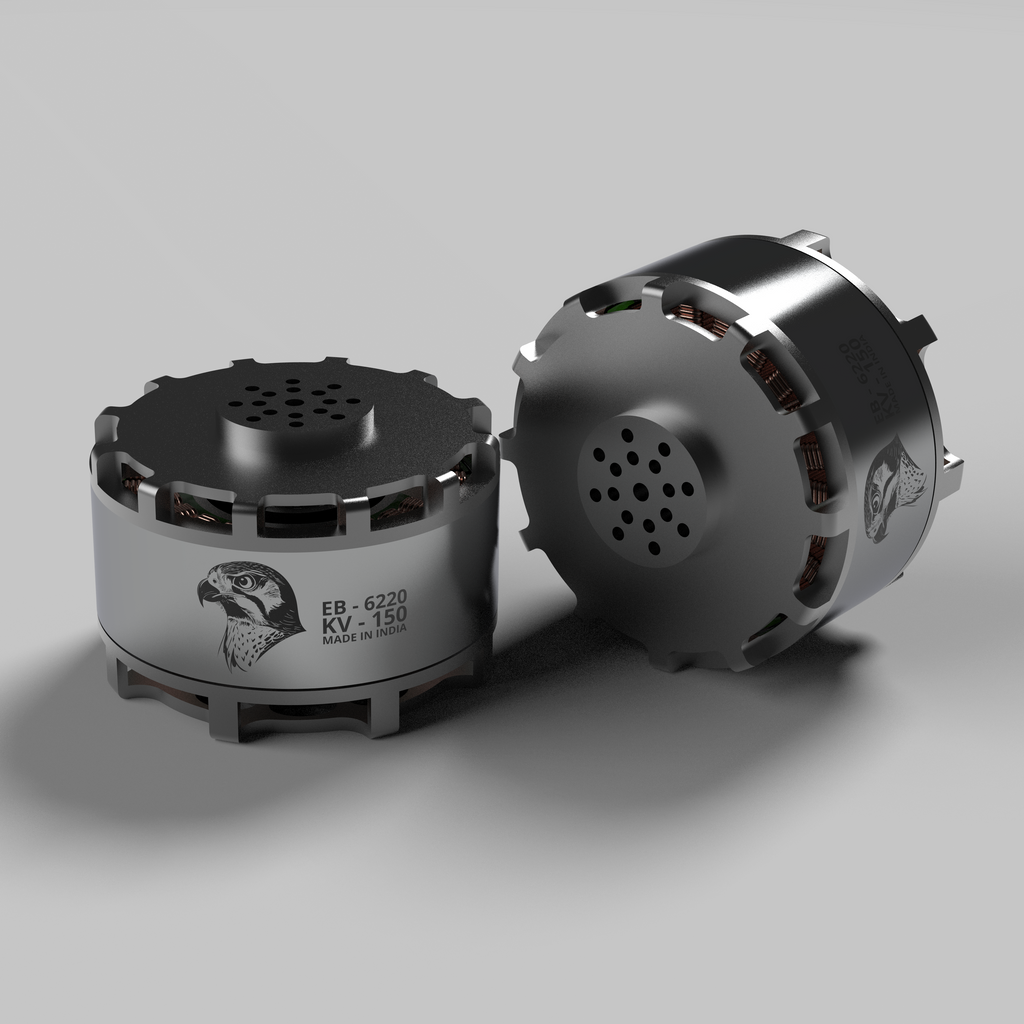

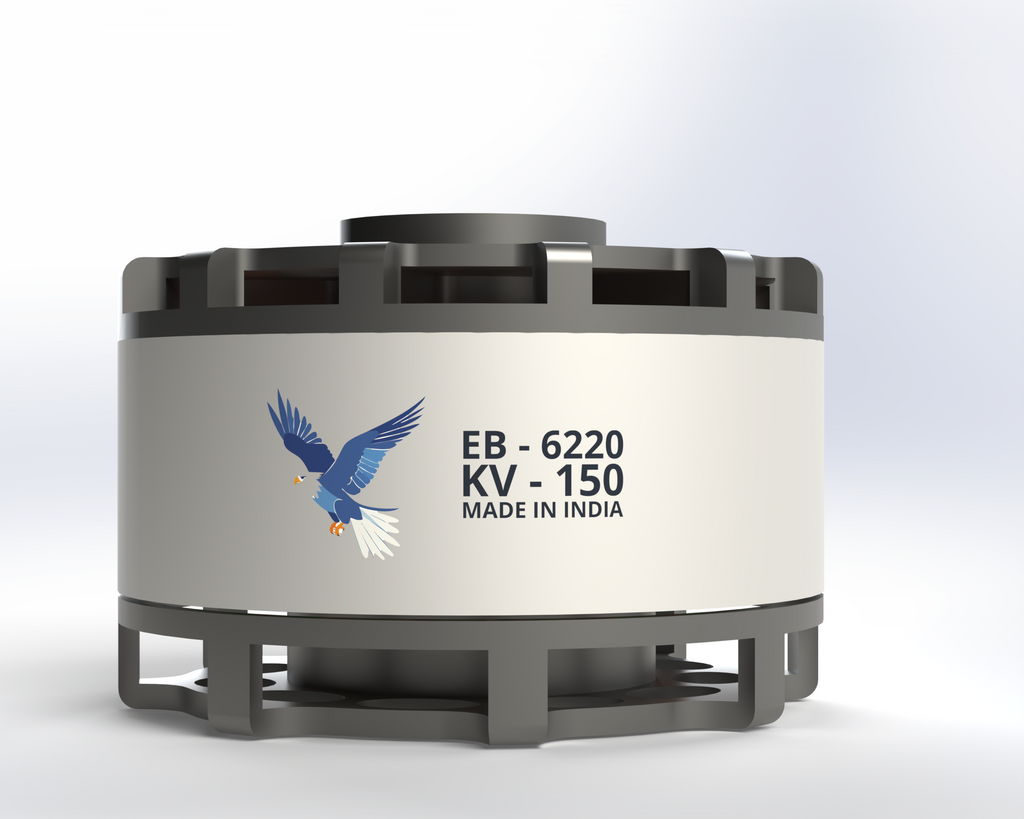

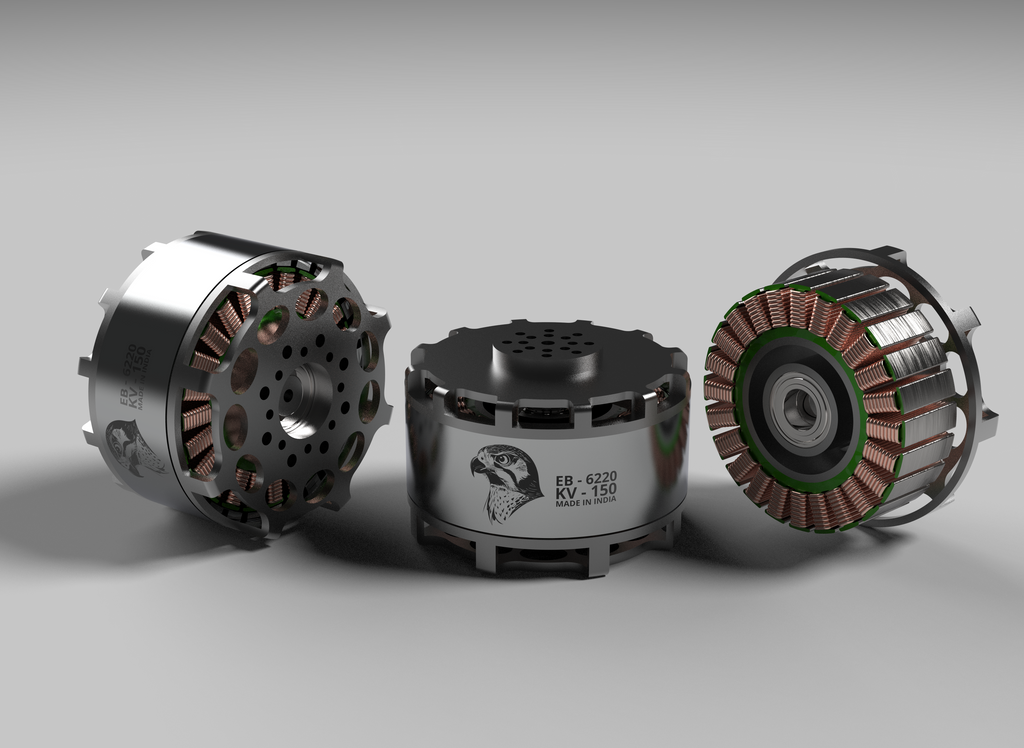

Motor TypeEB-6220
KV Rating150 KV
Rated Voltage12S LiPo (50 V)
Max Power (tested)3000 W
No-load Current0.5 A
Max Current60 A
Weight (incl. cable)460 g
Configuration24N28P
Stator LaminationJapanese 0.2 mm steel
PropellerHOBBYWING - 2480 (foldable)
Copper Wire Rating220°C high-temp resistance
CoolingVortex cooling (integrated)
Max Temperature80°C
Rotor Balance Standard≤ 5 mg
Typical ESC used80 A Flame ESC
Test Ambient37.8°C, 46.36% RH
Test Data
| Throttle | Optical Speed | Voltage | Current | Thrust | Torque | Electrical | Shaft | Electric Drive | Propeller Thrust | System Force |
|---|---|---|---|---|---|---|---|---|---|---|
| % | RPM | V | A | g | N·m | P-W | P-W | EFF - % | Eff - g/W | gf/W |
| 10 | 1417.484 | 50.292 | 0.934 | 596 | 0.21 | 46.973 | 31.172 | 66.362 | 19.12 | 12.688 |
| 20 | 1979.967 | 50.259 | 2.17 | 1299 | 0.41 | 109.062 | 85.01 | 77.946 | 15.281 | 11.911 |
| 30 | 2528.133 | 50.193 | 4.362 | 2210 | 0.67 | 218.942 | 177.379 | 81.016 | 12.459 | 10.094 |
| 40 | 3184.833 | 50.073 | 8.493 | 3538 | 1.057 | 425.27 | 352.525 | 82.894 | 10.036 | 8.319 |
| 50 | 3657.833 | 49.939 | 12.947 | 4750 | 1.405 | 646.56 | 538.182 | 83.238 | 8.826 | 7.347 |
| 60 | 4152.933 | 49.748 | 19.362 | 6216 | 1.834 | 963.221 | 797.596 | 82.805 | 7.793 | 6.453 |
| 70 | 4559.367 | 49.541 | 25.82 | 7505 | 2.22 | 1279.149 | 1059.952 | 82.864 | 7.081 | 5.867 |
| 80 | 4978.333 | 49.277 | 34.283 | 8984 | 2.647 | 1689.363 | 1379.96 | 81.685 | 6.51 | 5.318 |
| 90 | 5375.9 | 48.976 | 43.681 | 10428 | 3.068 | 2139.321 | 1727.17 | 80.734 | 6.038 | 4.874 |
| 100 | 5827.6 | 48.564 | 57.102 | 12258 | 3.601 | 2773.102 | 2197.564 | 79.246 | 5.578 | 4.42 |
