Specification

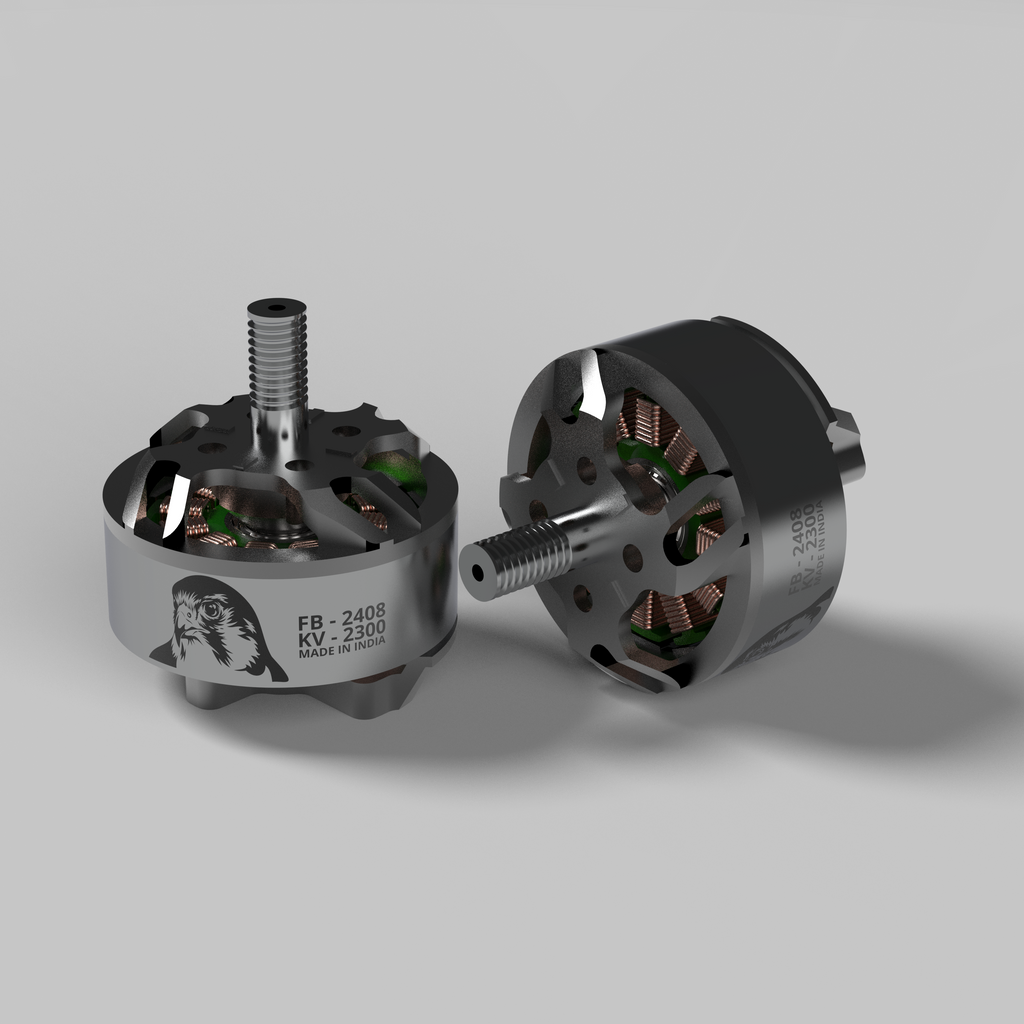

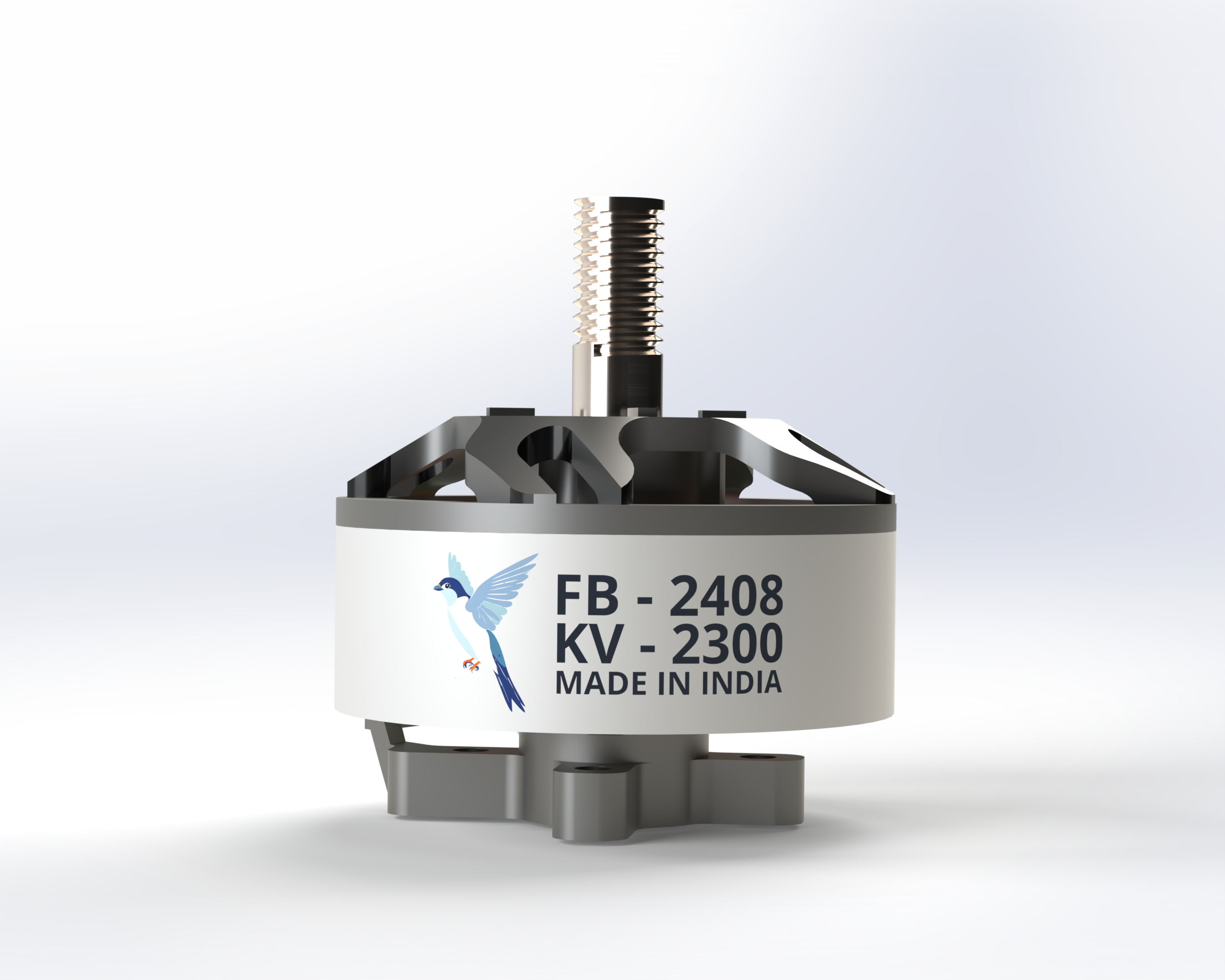

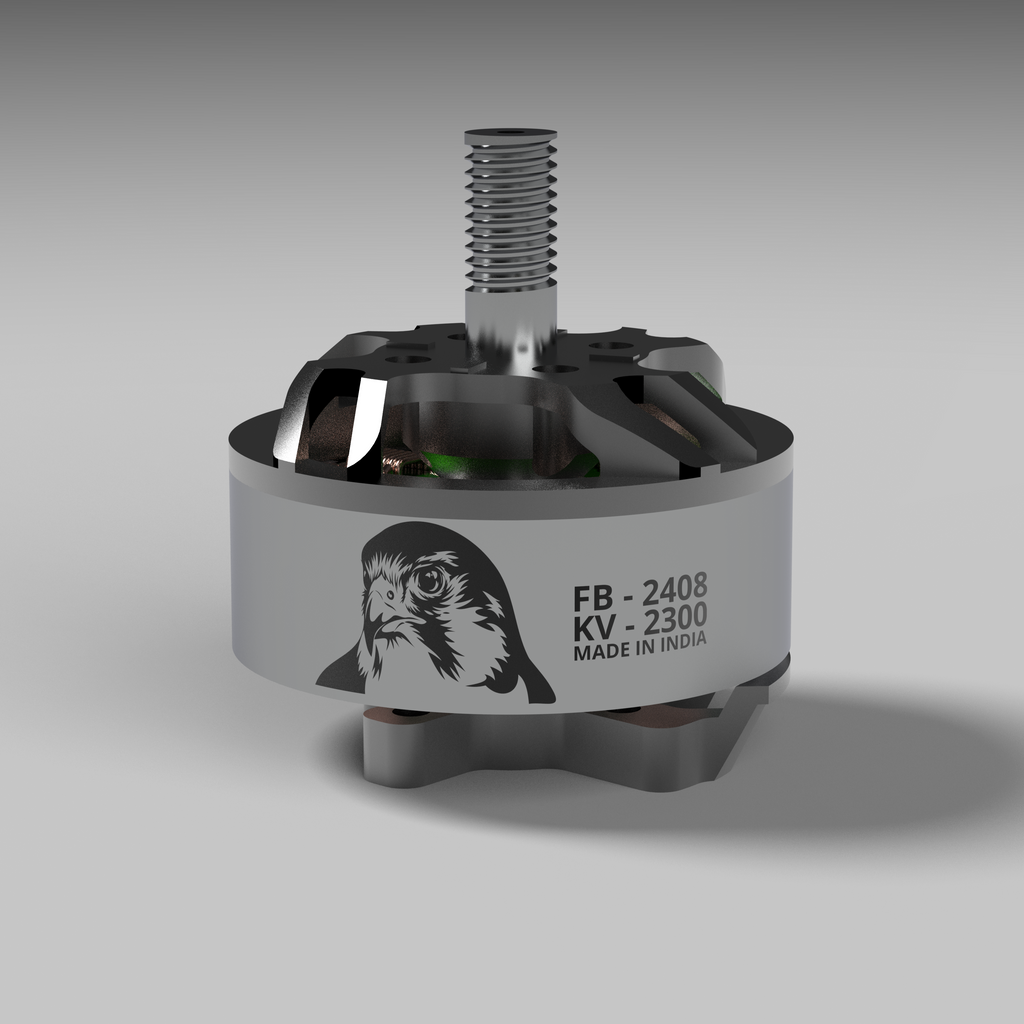

Motor TypeFB-2408
KV Rating2300 KV
Rated Voltage4S LiPo (16.7 V)
Max Power (tested)550 W
No-load Current0.5 A
Max Current35 A
Weight (incl. cable)48 g

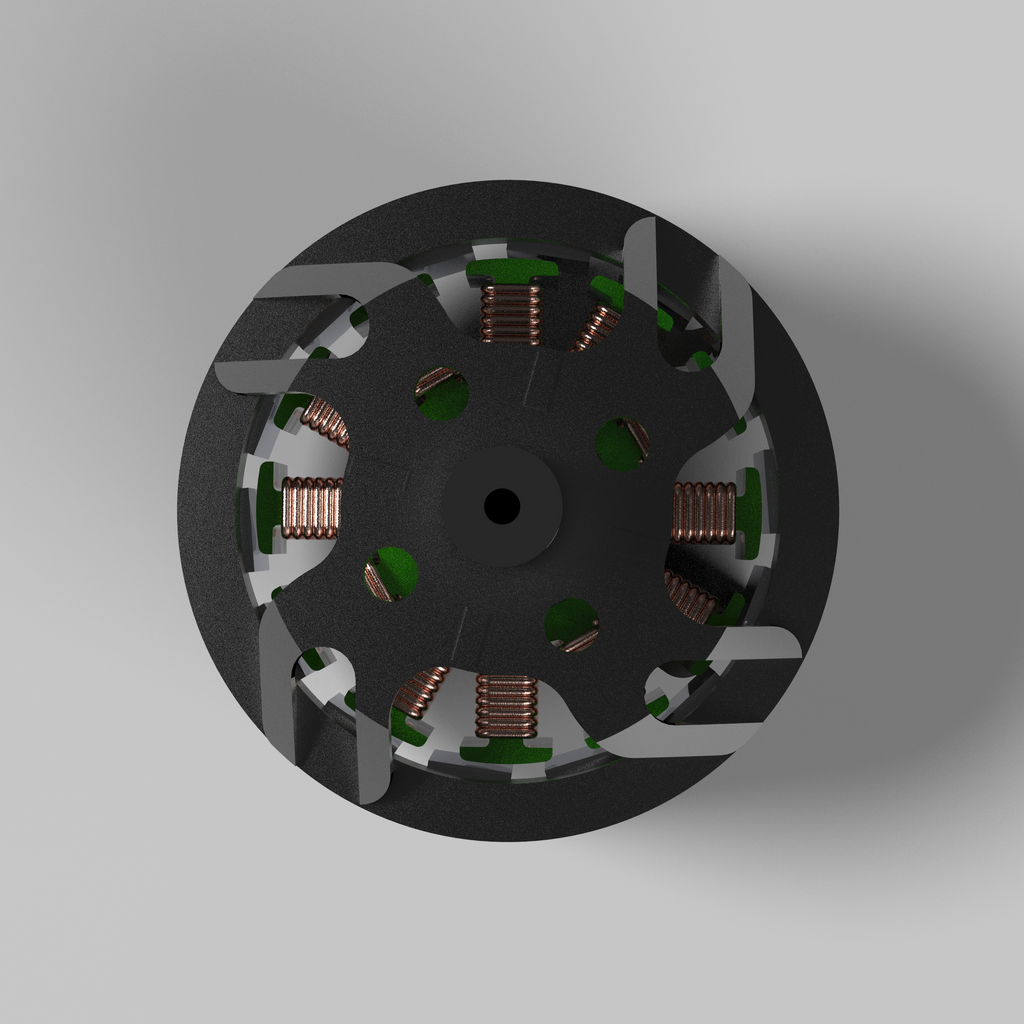

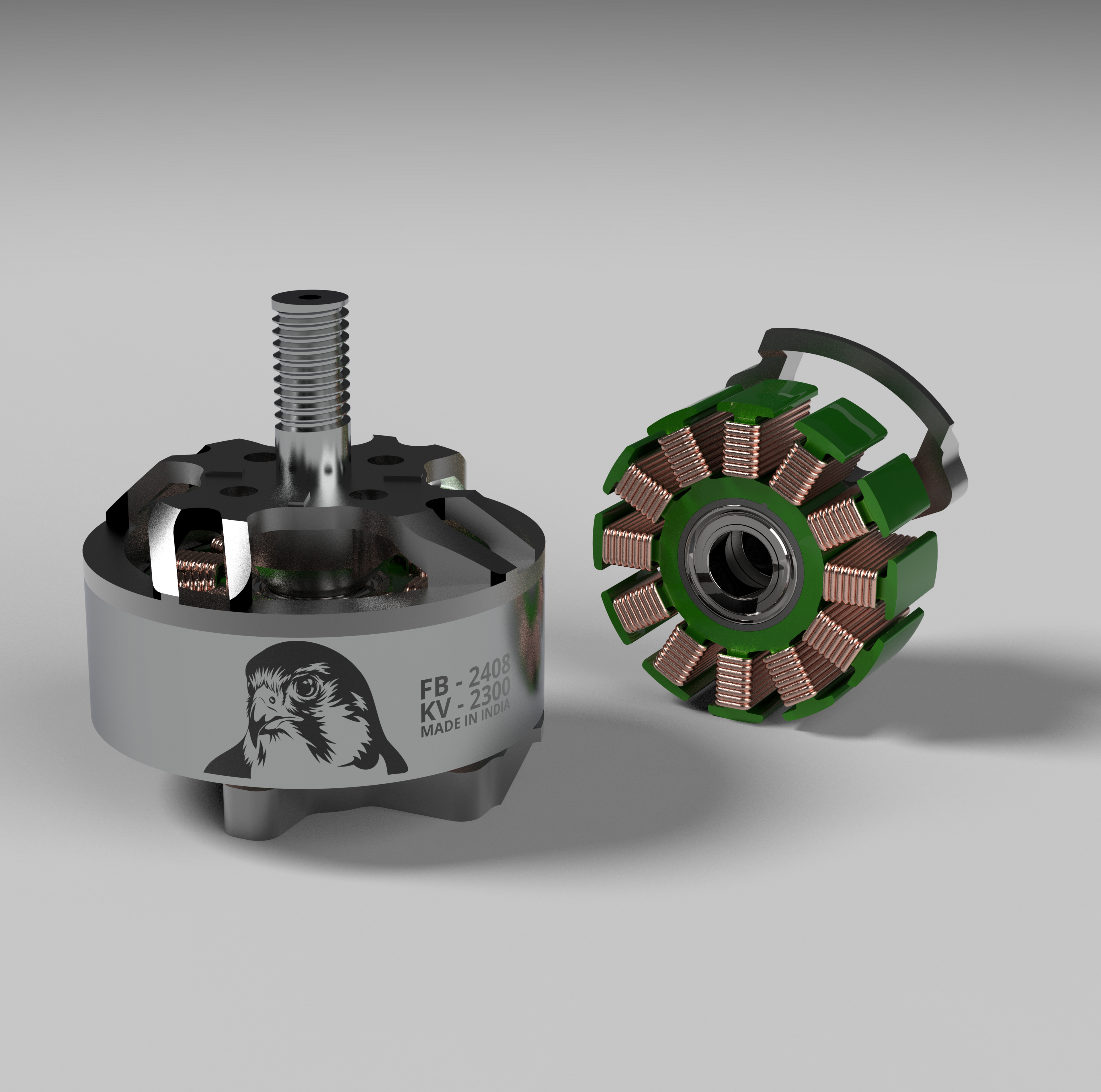

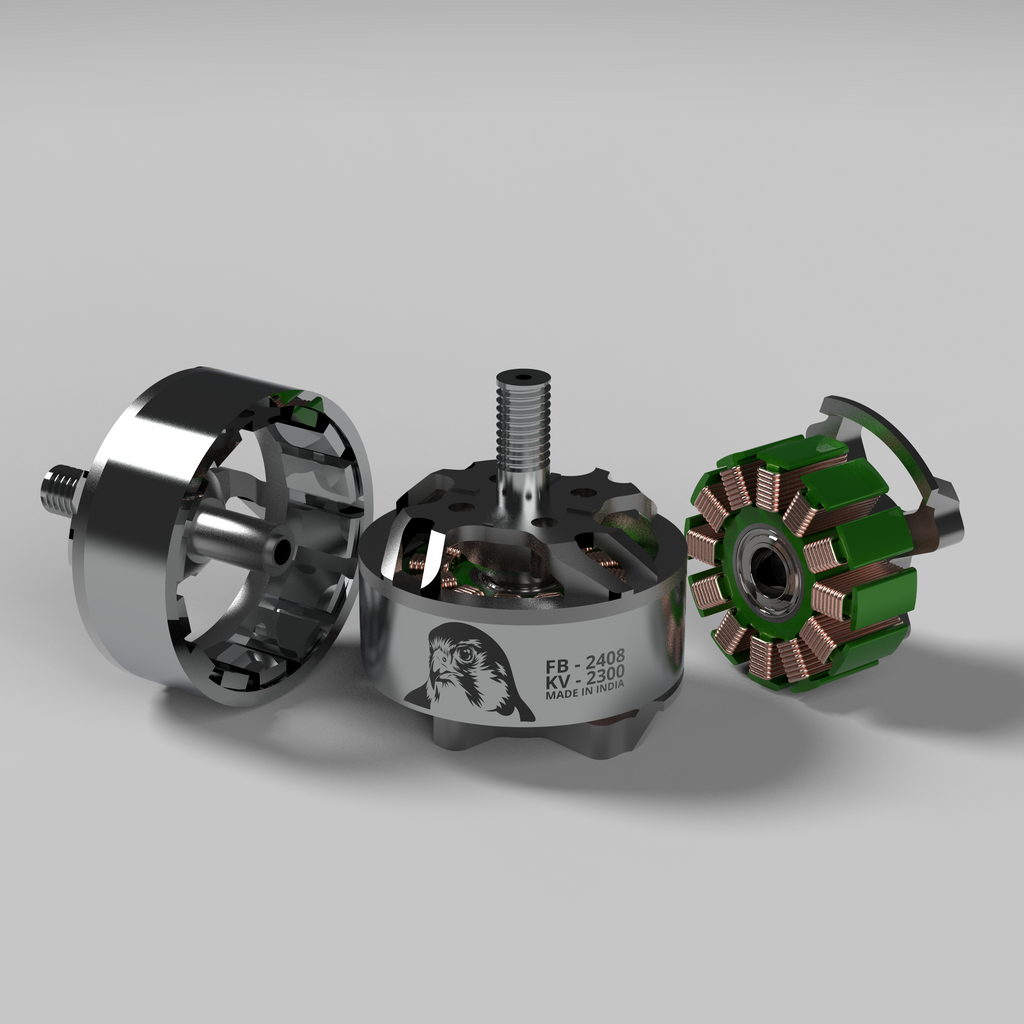

Configuration12N14P
Stator LaminationJapanese 0.2 mm steel
PropellerTri Blade - 5043
Copper Wire Rating220°C high-temperature resistance
CoolingVortex cooling design (integrated)
Max Temperature80°C
Rotor Balance Standard≤ 5 mg
Typical ESC used60 A Flame ESC
Test Ambient37.8°C, 46.36% RH, 98.43 kPa
Test Data
| Throttle | Optical Speed | Voltage | Current | Thrust | Torque | Electrical | Shaft | Electric Drive | Propeller Thrust | System Force |
|---|---|---|---|---|---|---|---|---|---|---|
| % | RPM | V | A | g | N·m | P-W | P-W | EFF - % | Eff - g/W | g/W |
| 10 | 9503 | 16.725 | 1.147 | 93.4 | 0.0106 | 19.184 | 10.549 | 54.989 | 8.854 | 4.869 |
| 20 | 13570 | 16.7 | 2.655 | 181.1 | 0.0212 | 44.338 | 30.126 | 67.946 | 6.011 | 4.085 |
| 30 | 16514 | 16.67 | 4.411 | 296.7 | 0.032 | 73.531 | 55.339 | 75.259 | 5.361 | 4.035 |
| 40 | 19157 | 16.633 | 6.491 | 408.1 | 0.0425 | 107.965 | 85.262 | 78.972 | 4.786 | 3.78 |
| 50 | 21335 | 16.595 | 8.581 | 506.6 | 0.0519 | 142.402 | 115.958 | 81.43 | 4.369 | 3.558 |
| 60 | 24012 | 16.544 | 11.42 | 629.3 | 0.0639 | 188.932 | 160.684 | 85.049 | 3.916 | 3.331 |
| 70 | 27563 | 16.441 | 15.594 | 809.3 | 0.0821 | 256.381 | 236.98 | 92.433 | 3.415 | 3.157 |
| 80 | 29888 | 16.366 | 20.849 | 968 | 0.0973 | 341.215 | 304.544 | 89.253 | 3.179 | 2.837 |
| 90 | 32143 | 16.281 | 25.523 | 1116.1 | 0.1115 | 415.54 | 375.31 | 90.319 | 2.974 | 2.686 |
| 100 | 34096 | 16.184 | 30.238 | 1234.2 | 0.1241 | 489.372 | 443.103 | 90.545 | 2.785 | 2.522 |
